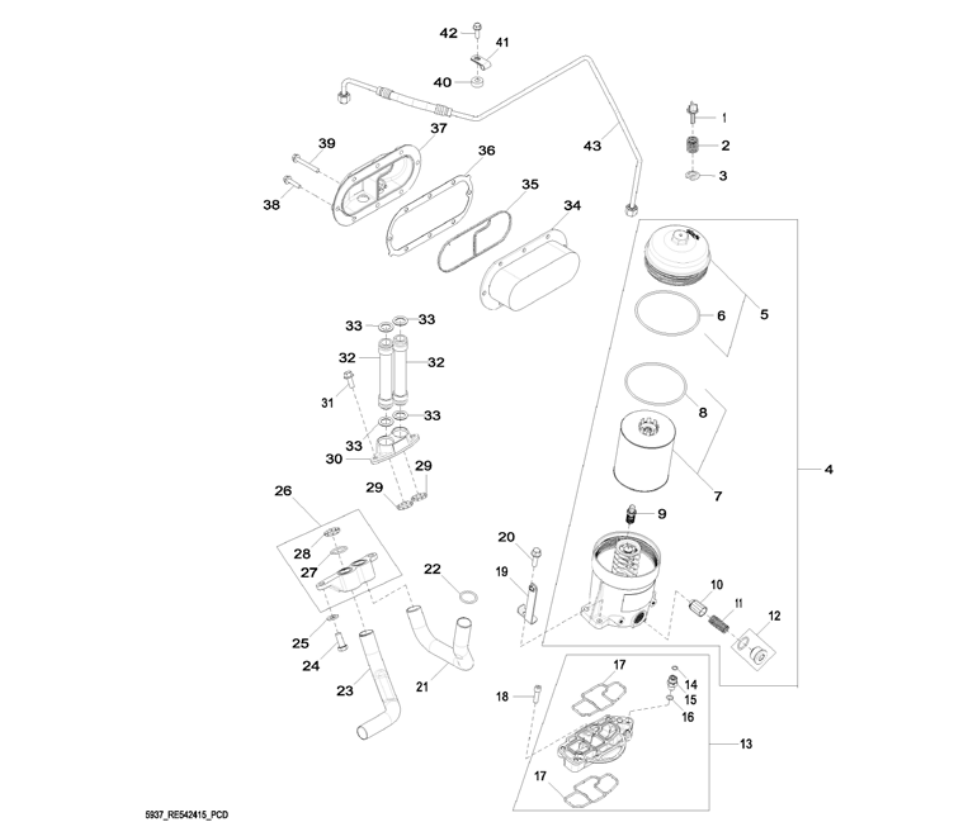

Group 59--1: Engine Oil Cooler, continued 第59-1組:發(fā)動機(jī)機(jī)油冷卻器,“GM93289,”“GM93285,”“GM91650,”“GM85414,”“GM85412,”“GM85410,”“GM

ItemPartDescriptionQuantityVariationNumber 59371 352722 VALVE (was R108867) 12 352811 SPRING, BYPASS 13 GM50130 Retainer 14 GM50200 Filter assembly (ReplacesRE505743)15 GM52862 Cap 16 GM67282 O-ring 1

Item Part Description Quantity Variation Number 5937 1 352722 VALVE (was R108867) 1 2 352811 SPRING, BYPASS 1 3 GM50130 Retainer 1 4 GM50200 Filter assembly (Replaces RE505743) 1 5 GM52862 Cap 1 6 GM67282 O-ring 1 7 GM48731 Element, oil filter 1 8 GM67282 O-ring 1 9 GM67292 Drain valve 1 10 GM52863 Pressure relief valve 1 11 GM52864 Compression spring 1 12 GM52865 Fitting plug 1 13 GM50219 Fitting, adapter 1 14 360555 O-RING 1 15 GM67272 Adapter fitting 1 16 223742 O-RING 1 17 GM50207 Seal kit 2 18 GM67279 Cap screw 3 19 GM98737 Bracket 1 20 M933-10035-82 SCREW, HEX CAP M10 x 35mm 4 21 GM50146 Oil tube 1 Item Part Description Quantity Variation Number 5937 22 223850 O-RING 1 23 GM67285 Oil tube 1 24 # Cap Screw 2 25 # Washer, M12 X 30 2 26 GM50247 Fitting, Adapter 1 27 223850 O-RING 2 28 GM50129 Seal 2 29 GM50129 Seal 2 30 GM50145 Fitting, Adapter 1 31 # Screw, M10 X 25 2 32 GM50206 Oil tube 2 33 GM50149 O-ring (Replaces R518804) 4 34 223680 OIL COOLER 1 35 GM88067 Seal (Replaces R504668) 1 36 GM98738 Gasket 1 37 GM50128 Cover 1 38 # Screw, M8 X 35 7 39 # Screw, M8 X 65 1 40 GM98739 Spacer 2 41 GM52867 Clamp 2 42 # Screw, M8 X 25 2 43 GM98740 Oil Line 1
