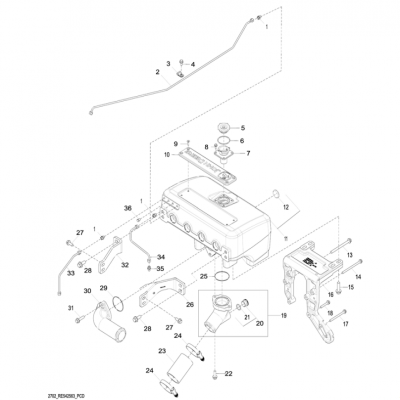

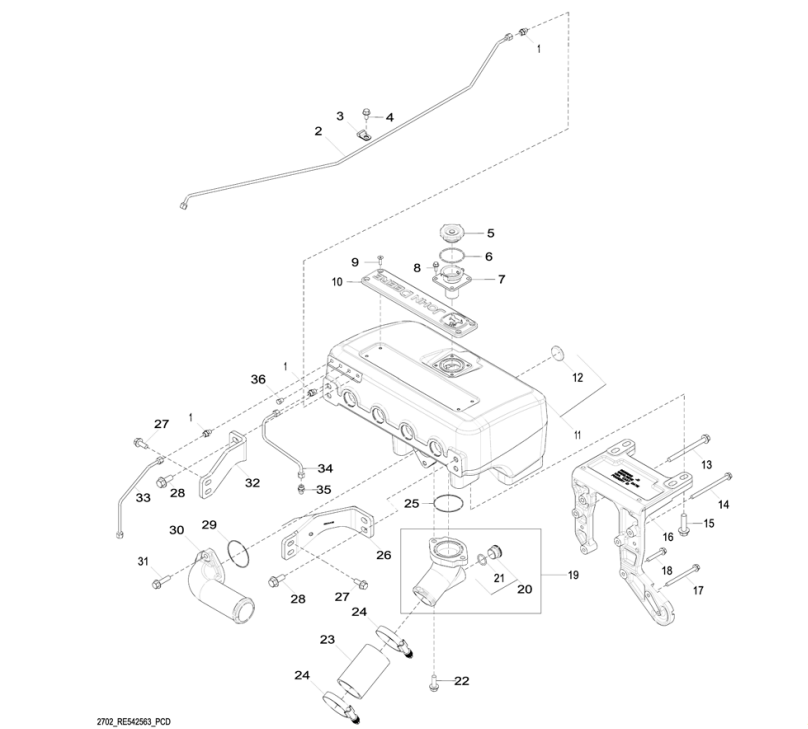

Item
Part
Description
Quantity
Variation
Number 2702
1 223820 FITTING 3
2 GM98708 Line 1
3 GM18754 Clip 2
4 # Screw, M8 X 16 2
5 GM88674 Filler Cap 1
6 GM88675 O-Ring 1
7 352112 Filler Neck 1
8 GM95664 Screw, M6 x 16 4
9 # M6 X 20 4
10 GM91892 Plate 1
11 GM98924 Tank 1
12 GM80245 Plug 8
13 GM98692 Cap Screw 2
14 GM98691 Cap Screw 3
15 # Screw,M12 X 45 4
16 GM98690 Bracket 1
17 # Screw, M8 X 100 1
18 # Screw, M8 X 50 1
19 GM98695 Adapter 1
Part
Quantity
Variation
Item Number Description 2702
20 GM96103 Fitting 1
21 GM69810 O-Ring 1
22 M933-10030-82 SCREW, HEX CAP M10 x
30mm
2
23 GM98694 Hose 1
24 GM98693 Clamp 2
25 GM98696 O-Ring 1
26 GM98704 Bracket 1
27 # Screw, M10 X 25 4
28 GM95662 Screw, M12 x 30 4
29 GM98696 O-Ring 1
30 GM98925 Adapter 1
31 # Screw, M10 X 40 2
32 GM98711 Bracket 1
33 GM98926 Line 1
34 GM98927 Line 1
35 223820 FITTING 1
36 # Pipe Plug, 1/8” 1
