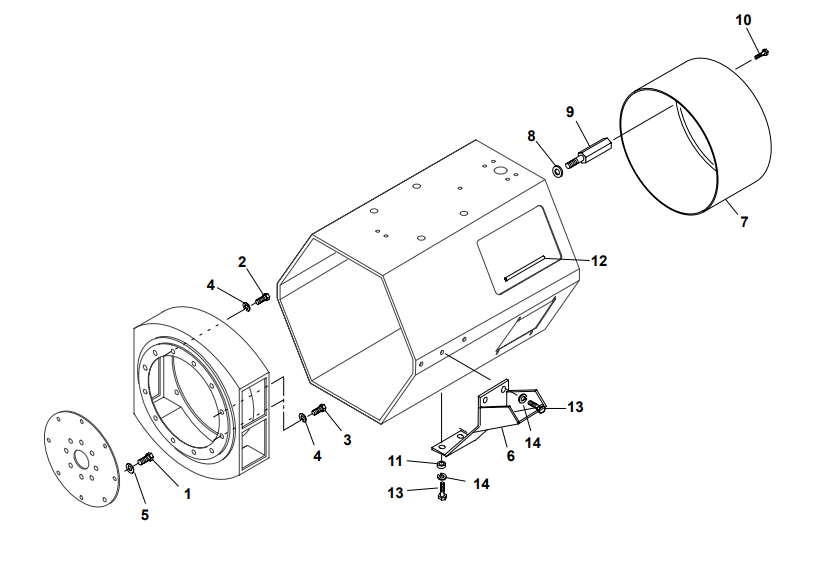

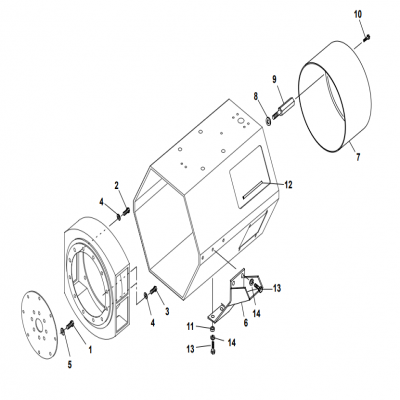

REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 805?0018 8 Bolt, Place (3/8?16 x 1”)
2 Screw, Cap ? Hex Head
800?2088 8 M10 x 35mm ? UC22
Generator
800?2088 12 M10 x 35mm ? UC27
Generator
3 800?2090 4 Screw, Cap ? Hex Head (M10 x
45mm) (UC22 Generator)
4 850?2010 12 Washer, Lock ? Spring (M10)
5 526?0174 8 Washer, Flat (3/8”)
6 Bracket, Generator Mounting
403?5256?02 2 UC22 Generator
403?5255?02 2 UC27 Generator
7 234?0875?01 1 Cover, End Bell
8 526?2080 8 Washer, Flat (M6)
9 232?3462?01 4 Spacer, Cover
10 821?2020 4 Screw, Lock (M5 x 10mm)
11 Spacer, Mounting Foot
232?3730?03 4 UC22 Generator
232?3730?04 4 UC27 Generator
12 508?0305?02 ? Edging ? Bulk (Order by the Foot
? 5 Feet Required)
13 Screw, Cap ? Hex Head
800?2088 8 M10 x 35mm ? UC22
800?2113 8 M12 x 30mm ? UC27
14 Washer, Lock ? Split
850?2010 8 M10 ? UC22 Generator
850?2012 8 M12 ? UC27 Generator
