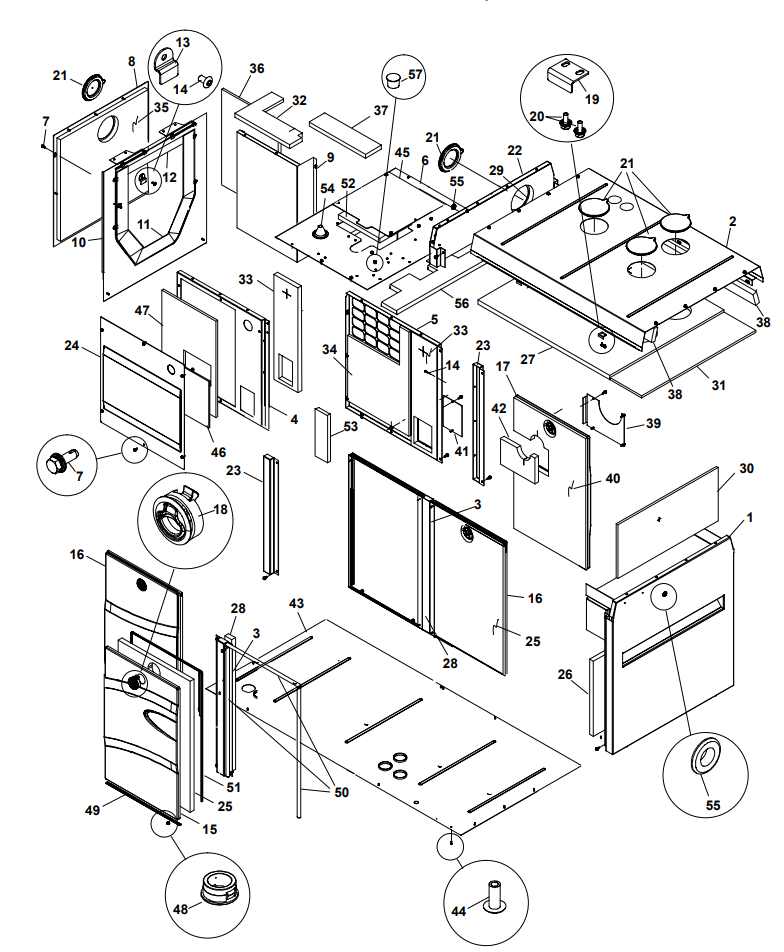

Housing
(MDDCA, MDDCB, MDDCC,
MDDCF and MDDCG)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
541?1126?01 1 Kit, Sound Shield (40, 55, 65kW)
1 405?7805?03 1 Panel, Enclosure
(Front Non?PTO)
2 405?7795?03 1 Panel, Roof
3 405?7796?03 2 Stiffener, Enclosure
4 405?8051?03 1 Panel, Enclosure
5 405?8052?03 1 Panel, Enclosure
6 405?8053?03 1 Panel, Enclosure
7 821?6006?01 87 Screw, Hex Head
Sems Stainless
(M6 x 1.0 x 16mm)
8 405?7802?03 1 Cover, Enclosure
9 405?7857?02 1 Panel, Air Baffle
10 405?8015?02 1 Panel, Air Baffle
11 509?0392 1 Seal, Brush
12 509?0393 1 Seal, Brush
13 134?5299?02 13 Bracket, Fan
14 Rivet, Pop
818?0231?01 13 PTO and Non?PTO
(MDDCA and MDDCF)
818?0231?01 19 PTO and Non?PTO
(MDDCB,MDDCC, MDDCG
and MDDCH)
15 405?7781?09 1 Door, Access
16 405?7781?10 2 Door, Access
17 405?7781?11 1 Door, Access
18 406?1055 4 Latch, Door (Flush Pull)
19 406?1050 4 Catch, Door
20 821?6001?01 8 Screw, Hex Head Sems
(M5 x .8 x 10mm)
21 405?7257 5 Cover, Access
22 405?7797?03 1 Panel ,Roof (End)
23 405?7914?03 2 Spacer, Panel (MDDCB,
MDDCC, MDDCG
and MDDCH PTO and
Non?PTO)
24 405?8023?03 1 Panel, Access
25 405?7813 3 Insulation, Door
26 405?7814 1 Insulation, Enclosure
(Front Non?PTO only)
27 405?7815 1 Insulation, Roof
28 405?7816 2 Insulation, Enclosure (Stiffener)
29 405?7817 1 Insulation, Enclosure
30 405?7819 1 Insulation, Baffle
31 405?7820 1 Insulation, Baffle
32 405?8281 1 Insulation, Enclosure
33 405?7858 2 Insulation, Enclosure
34 405?7822 1 Insulation, Enclosure
35 405?7823 1 Insulation, Cover
36 405?7824 1 Insulation, Baffle
37 405?7859 1 Insulation, Enclosure
38 405?8097?01 2 Insulation, Roof
39 405?8042?03 1 Panel, Enclosure
40 405?8064 1 Insulation, Enclosure
41 405?8024?03 1 Panel, Access
42 405?8067 1 Insulation, Enclosure
43 Pan, Skid
403?5331?02 1 MDDCA and MDDCF
403?5260?02 1 MDDCB, MDDCC, MDDCG
and MDDCG
44 818?0231?02 22 Rivet, Pop
45 405?8094?03 1 Panel, Access
46 405?8096 1 Insulation, Enclosure
47 405?7860 1 Insulation, Enclosure
48 508?1209 8 Bushing
49 895?0395 1 Seal, Weather (996mm)
50 895?0411 1 Seal, Enclosure (8024mm)
51 508?0333 1 Trim, Edge (8128mm)
52 405?8235 2 Insulation, Cover
53 405?8236 2 Insulation, Baffle
54 508?1203 1 Grommet
55 508?0021 2 Grommet
56 405?8277 1 Insulation, Enclosure
57 517?0131?03 4 Plug, Hole
* ? All parts included with PTO and Non?PTO Housing
unless noted.
+ ? All parts included with Sound Shield Kit unless noted.
