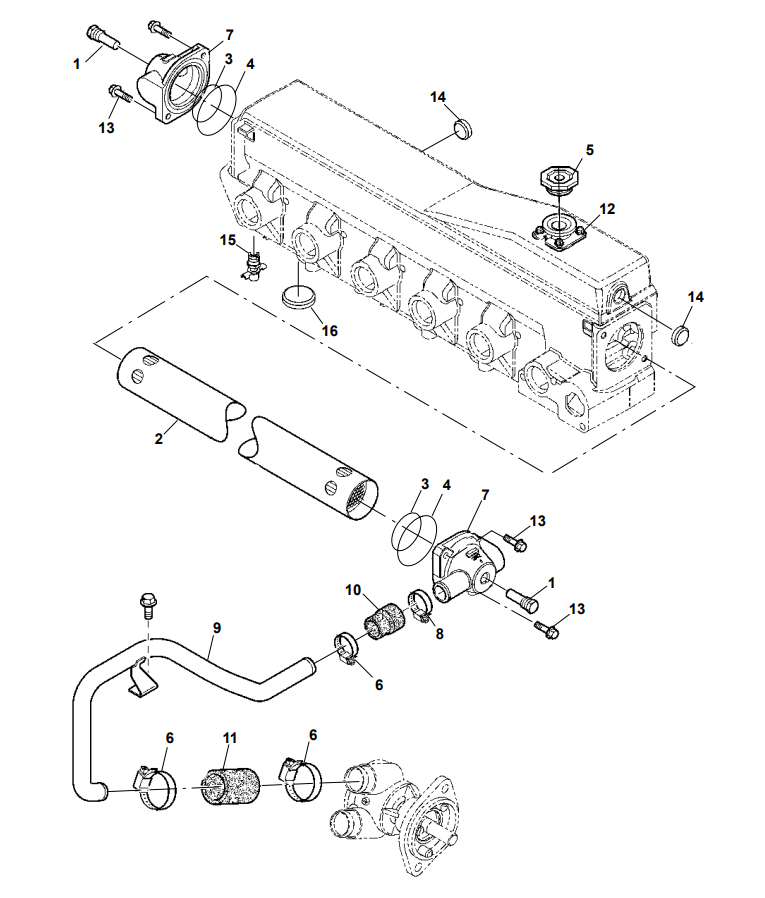

Heat Exchanger
(Wet)
REF PART QTY PART REF PART QTY PART
NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION
1 130?6228 2 Plug, Anode
2 Exchanger, Heat
130?6267 1 MDDCA, MDDCB, MDDCC,
MDDCF and MDDCG
130?6273 1 MDDCD, MDDCE, MDDCH
and MDDCJ
3 509?0399 2 Package, Heat Exchanger
O’Ring
4 509?0400 2 Package, Heat Exchanger
5 130?6266 1 Cap, Radiator
6 Clamp, Hose
503?2524 3 MDDCA, MDDCB, MDDCC,
MDDCF and MDDCG
503?2532 3 MDDCD, MDDCE, MDDCH
and MDDCJ
7 130?6268 2 Cover, Heat Exchanger
O’Ring
8 Clamp, Hose
503?2523 1 MDDCA, MDDCB, MDDCC,
MDDCF and MDDCG
503?2531 1 MDDCD, MDDCE, MDDCH
and MDDCJ
9 130?6269 1 Tube, Seawater
(Pump to Exchanger)
10 503?2525 1 Hose, Seawater
11 Hose, Seawater
503?2526 1 MDDCA, MDDCB, MDDCC,
MDDCF and MDDCG
503?2522 1 MDDCD, MDDCE, MDDCH
and MDDCJ
12 800?6320 4 Screw, Flanged (M6 x 16mm)
13 800?6321 4 Screw, Flanged (M10 x 35mm)
14 323?2178 1 Plug, Exhaust Manifold
15 Cock, Special Drain
504?0269 1 MDDCA, MDDCB, MDDCC,
MDDCF and MDDCG
504?0270 1 MDDCD, MDDCE, MDDCH
and MDDCJ
16 323?2179 1 Plug, Exhaust Manifold
