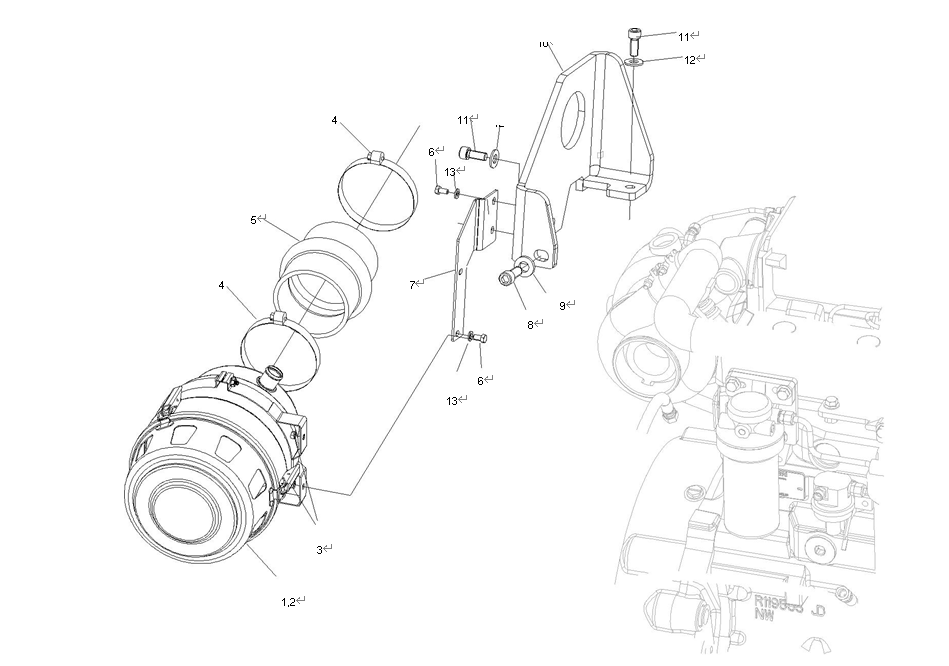

REF PART QTY PART REF PART QTY PART NO. NO. USED DESCRIPTION NO. NO. USED DESCRIPTION

1 140?3589 1 Cleaner, Air

 2 140?3752 1 Element, Air Cleaner

 (Not Shown)

3 862?0026?54 2 Nut, Hex (M6 x 1)

 4 Clamp

 4 Cylinder

503?1872?07 2 50, 60Hz

 6 Cylinder

 503?1872?07 2 50Hz

 503?1872?07 1 60Hz

 503?1872?05 1 60Hz

5 Hose, Intake

 4 Cylinder

503?2476 1 50 and 60Hz

 6 Cylinder

503?2476 1 50Hz 503?2477 1 60Hz

6 800?3017?02 4 Screw, Hex Head

 (M6 x 1 x 12mm)

7 140?3584?03 1 Bracket, Air Cleaner

 8 725?1101 1 Screw, Socket Head

 (M12 x 1.75 x 30mm)

 9 526?0399?73 1 Washer, Flat (M12)

10 403?5283?03 1 Bracket, Engine

 11 725?1075 2 Screw, Socket Head

 (M10 x 1.50 x 25mm)

12 526?0399?43 2 Washer, Flat (.438”)

 13 526?0399?58 4 Washer, Flat (M6)
